AS568-003 Silicone 50 Duro Red FDA O-Ring for 1/16 ID X 1/16 CS

Silicone O-Rings 50 Duro Red FDA S500301-003

$ 0.1132 per Each

Minimum Order Quantity (MOQ): 266

Out of stock

Qty	Price
266 - 309	$0.1132
310 - 671	$0.0849
663 - 1325	$0.0736
1326 - 2650	$0.0623
2651 - 5300	$0.0509
5301+	$0.0453

This item is out of stock. Request a quote and we'll confirm pricing and lead time for your quantity.

Product Details

Material	Silicone
Temperature Range	-75°F to 450°F
Cross Sectional Shape	Round
Hardness	50
Dash	003

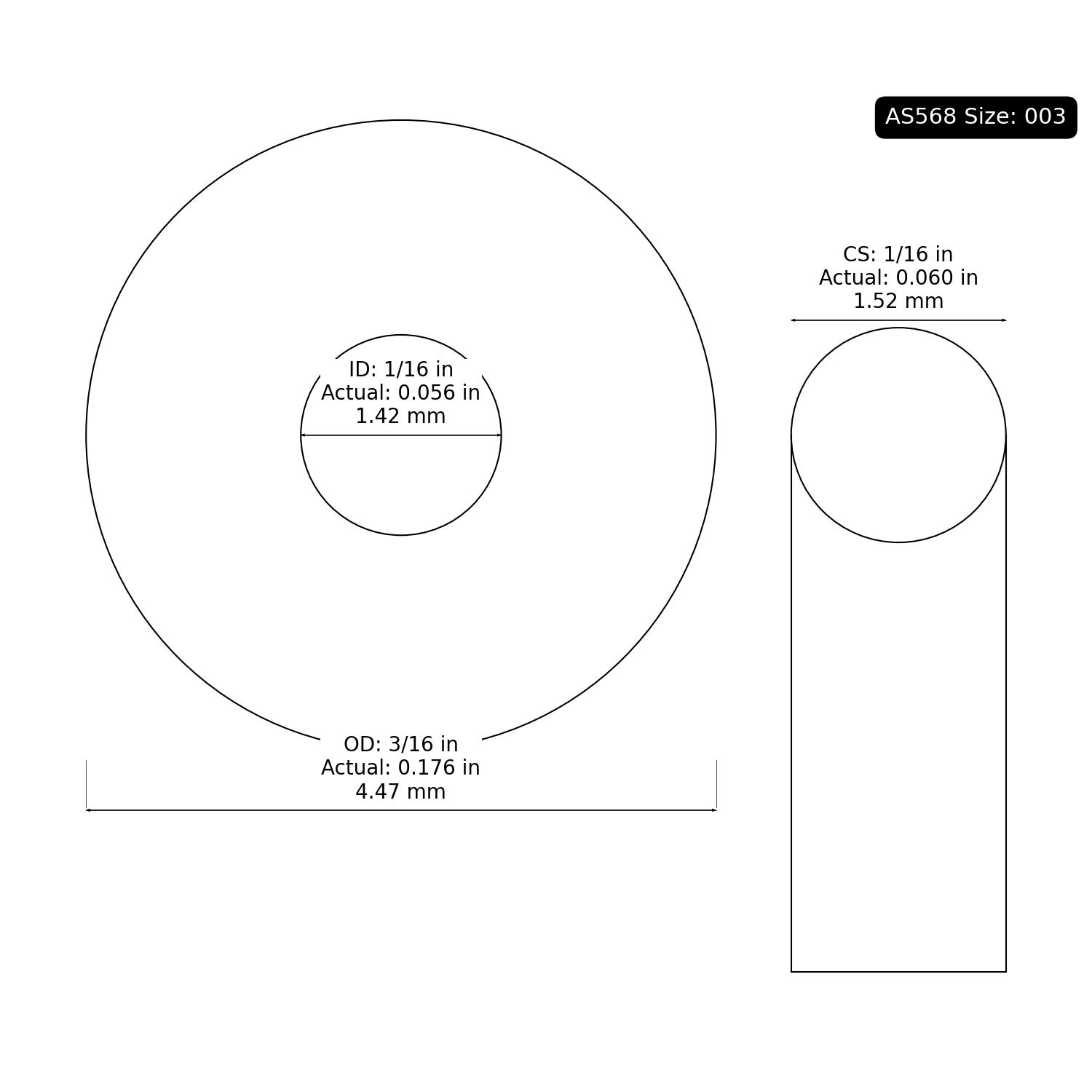

Fractional	ID: 1/16 CS: 1/16 OD: 3/16
Actual (Inch)	ID: 0.056 ± 0.004 CS: 0.060 ± 0.003 OD: 0.176
Actual (Metric)	ID: 1.42 ± 0.10 CS: 1.52 ± 0.08 OD: 4.460

Silicone O-rings are made from a synthetic elastomer composed of silicon, oxygen, hydrogen, and carbon. They are widely used for their excellent flexibility, high-temperature resistance, and exceptional aging properties. Silicone O-rings offer great thermal stability, low toxicity, and resistance to weathering, ozone, and UV exposure, making them ideal for medical, automotive, and food-grade applications. Many silicone compounds are **FDA-compliant**, making them suitable for food and pharmaceutical uses.

Silicone Recommended Uses

Medical and pharmaceutical applications, food and beverage processing, automotive components, aerospace industries, high-temperature sealing applications, and electrical insulation.

Silicone Not Recommended

Petroleum-based oils, fuels, concentrated acids, alkalis, ketones, and steam under high pressure.

Silicone Limitations

Not resistant to petroleum-based fluids and fuels.
Lower mechanical strength compared to other elastomers.
Not ideal for applications requiring high tear and abrasion resistance.
Can swell or degrade when exposed to certain chemicals and oils.

Silicone Usable Temperature Range

-85 to 450°F (-65 to 232°C)

Silicone Also Known As

Silicone Rubber, VMQ (Vinyl Methyl Silicone), Polysiloxane.
