AS568-009 Neoprene 70 Duro Black O-Ring for 7/32 ID X 1/16 CS

Neoprene O-Rings 70 Duro Black CR700100-009

$ 0.107 per Each

Minimum Order Quantity (MOQ): 281

Ships within 14 days

Qty	Price
281 - 327	$0.1070
328 - 710	$0.0803
701 - 1401	$0.0696
1402 - 2803	$0.0589
2804 - 5607	$0.0481
5608+	$0.0428

Ordering in large quantities? Ask for a lead time quote — we'll get back to you with pricing and lead time.

Product Details

Part Number	CR700100-009
Material	Neoprene
Temperature Range	-40°F to 250°F
Cross Sectional Shape	Round
Hardness	70
Color	Black
Dash	009

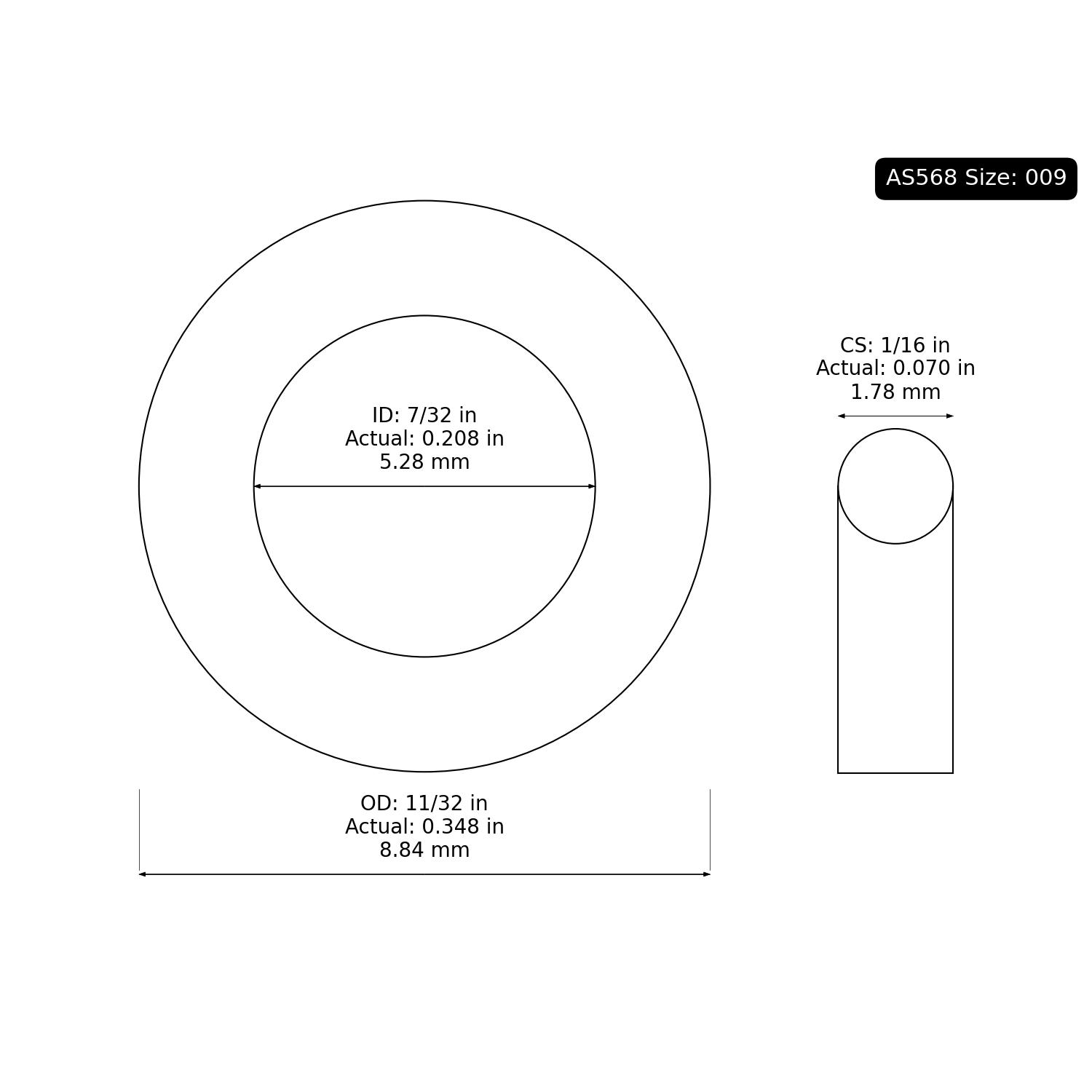

Fractional	ID: 7/32 CS: 1/16 OD: 11/32
Actual (Inch)	ID: 0.208 ± 0.006 CS: 0.070 ± 0.003 OD: 0.348
Actual (Metric)	ID: 5.28 ± 0.15 CS: 1.78 ± 0.07 OD: 8.84

Neoprene (Chloroprene) O-rings are made from a synthetic rubber compound produced by the polymerization of chloroprene. These seals are known for their excellent balance of mechanical properties and resistance to environmental degradation. Neoprene o-rings provide superior resistance to sun, ozone, and weather, along with good tearing resistance and moderate resistance to oils and chemicals, making them ideal for general-purpose industrial and marine applications.

Neoprene Recommended Uses

Seals and gaskets, marine applications, refrigeration systems (Freon/refrigerants), HVAC equipment, outdoor weathering applications, moderate oil and chemical exposure, and general industrial sealing.

Neoprene Not Recommended

Strong oxidizing acids, ketones, esters, chlorinated hydrocarbons, aromatic hydrocarbons (like benzene), and nitro hydrocarbons.

Neoprene Limitations

Limited resistance to strong chemicals and oxidizing agents.
Prone to degradation when exposed to polar solvents and certain fuels.
Inferior high-temperature performance compared to fluorocarbon elastomers.
Can absorb moisture over extended periods in specific underwater applications.

Neoprene Usable Temperature Range

-40 to 250°F (-40 to 121°C)

Neoprene Also Known As

CR, Chloroprene Rubber, Baypren®, Neoprene Elastomer.
